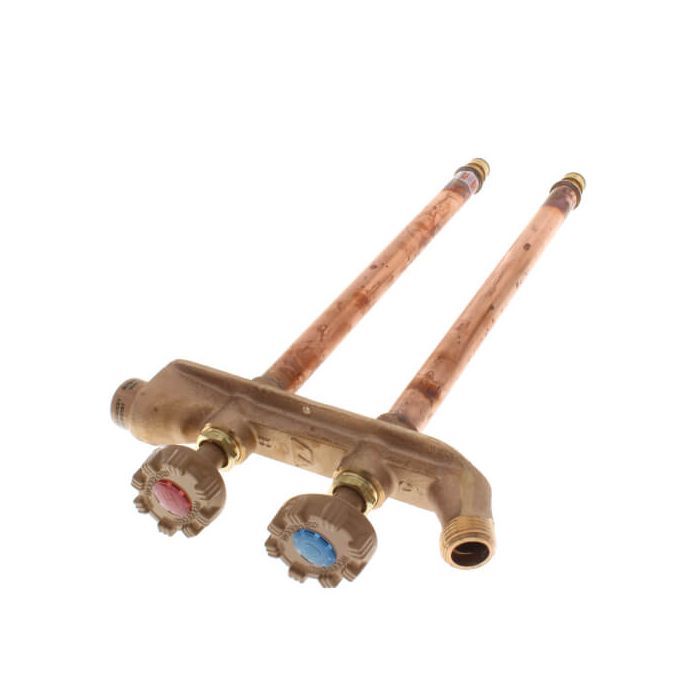

Model V22 12", 3/4" Expansion PEX Inlet Vertical Hot & Cold Anti-Siphon Wall Faucet w/ Metal Handle

Overall Length of this product is 14-1/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details. The freezeless Model 22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The Model 22 contains an integral backflow protection device and does not require and add-on vacuum breaker. Model V22 Vertical Mount - Rough Brass for end wall installation Specifications: Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending ASSE 1019 Listed CSA, UPC, cUPC Approved Not intended for continuous use Features: Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on. Built-In Vent Float style Vacuum Breaker Faucet drains automatically when hose is removed EPDM packing to prevent leaking Oval, powder-coated, die cast aluminum handle Stainless steel seat - eliminates wire draw Standard “O” size seat washer Tee Key configuration - (extra charge) No-lead solder 3/4” male hose thread MAX PRESSURE - 125 p.s.i. MAX TEMPERATURE - 120° FHide Description
