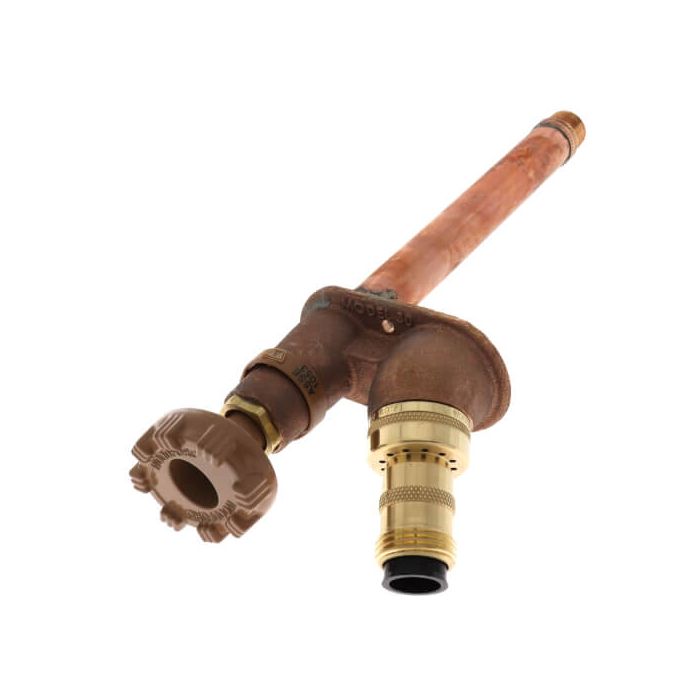

Model 30 4", 1/2" PEX Crimp Inlet Downward Pitch Anti-Siphon Wall Faucet w/ Metal Handle
In stock
$89.75
[{"Product Highlights":"1/2\""},{"Product Highlights":"5-3/4\" Length"},{"Product Highlights":"PEX Crimp"},{"Product Highlights":"4\""},{"Product Highlights":"125 PSI"},{"Product Highlights":"120°F Max Temp"}]
| Size | 4" x 1/2" |
|---|---|
| Length Inches | 5-3/4" |
| Max Pressure PSI | 125 |
| Wall Thickness | 4" |
Overall Length of this product is 5-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford Model 30 faucet automatically drains
with or without a hose attached. The faucet is intended
for irrigation purposes and designed for residential and
light commercial outside water service applications.
Specifications:
Faucet automatically drains with or without hose attached
No sprayback when faucet is shut off
All structural components made of brass
Model 30 wall faucet is ASSE 1053 Approved.
Attached Backflow Preventer Features:
ASSE 1052 Listed
Field Testable
Dual Check Valves
Holds against 125 p.s.i backpressure
No lead solder
Oval metal handle (Tee Key available)
Max pressure: 125 p.s.i.
Max Temperature: 120° FHide Description
