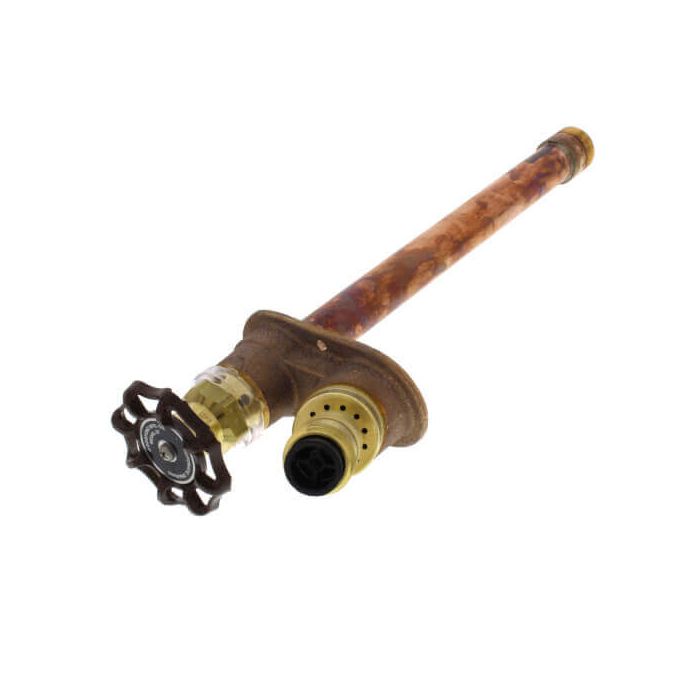

Model 27 4", 1/2" PEX Inlet Dual Check Anti-Siphon Automatic Draining Wall Faucet w/ Metal Handle
In stock
$89.75
[{"Product Highlights":"1/2\""},{"Product Highlights":"5-3/4\" Length"},{"Product Highlights":"PEX Crimp"},{"Product Highlights":"4\""},{"Product Highlights":"125 PSI"},{"Product Highlights":"120°F Max Temp"}]
| Size | 4" x 1/2" |
|---|---|
| Length Inches | 5-3/4" |
| Max Pressure PSI | 125 |
| Anti Siphon | Yes |
| Wall Thickness | 4" |
Overall Length of this product is 5-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford Model 27 drains as handle is shut off
even if hose is attached. This faucet is designed for
residential outside water service applications and
intended for irrigation purposes.
Specifications:
ASSE 1052 Approved
Listed by IAPMO
Field Testable
Two Independent Check Valves
Drains automatically when hose is removed
No spray back
Features:
EXTERIOR FINISH - Brass
VALVE - Molded nitrile suitable for hot water.
NOZZLE - 3/4†male hose thread.
NO LEAD SOLDER - All solder joints.
PLUNGER - Hemispherical cushion type.
STEM SCREW - DELRIN
HEAD NUT - Brass
HANDLE - Metal. (Optional Tee Key)
INLETS - As shown.
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
