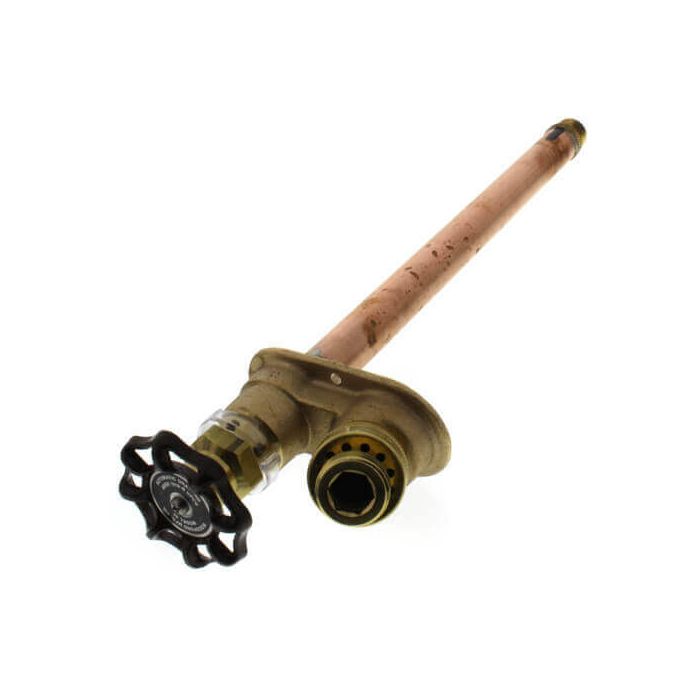

Model 25 8", 1/2" PEX Crimp Inlet Automatic Draining Anti-Siphon Wall Faucet w/ Metal Handle
In stock
$91.27
[{"Product Highlights":"1/2\""},{"Product Highlights":"9-3/4\" Length"},{"Product Highlights":"PEX Crimp"},{"Product Highlights":"8\""},{"Product Highlights":"125 PSI"},{"Product Highlights":"120°F Max Temp"}]
| Size | 8" x 1/2" |
|---|---|
| Length Inches | 9-3/4" |
| Max Pressure PSI | 125 |
| Wall Thickness | 8" |
Note: This item offers anti-siphon protection
Overall Length of this product is 9-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford Model 25 drains as handle is shut off even
if hose is attached. This faucet is designed for outside
residential water service applications and intended for
irrigation purposes.
Specifications:
MODEL 25 - Approved under ASSE Standard 1019-B and listed by IAPMO. Meets Government Specification WW-541b Type 205.
Vacuum Breaker - Anti-Siphon
NIDEL model 34HA with 3/4†male hose thread.
Approved under ASSA Standard 1011. Canadian Standards Association and listed by IAPMO
Features:
EXTERIOR FINISH - Brass
VALVE - Molded nitrile suitable for hot water.
NOZZLE - 3/4†male hose thread.
NO LEAD SOLDER - All solder joints.
PLUNGER - Hemispherical cushion type.
STEM SCREW - DELRIN
HEAD NUT - Brass
HANDLE - Metal. (Optional Tee Key)
INLETS - As shown.
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
