LFIS6301 3/4" Full Port Ball & Waste Sweat Ball Valve (Lead Free)
In stock
$30.30
[{"Product Highlights":"3/4\""},{"Product Highlights":"C x C Connection"},{"Product Highlights":"Brass"},{"Product Highlights":"Lever"},{"Product Highlights":"Yes"},{"Product Highlights":"Full Port"}]
| Material | Brass |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 3/4" |
| Port Type | Full Port |
| WOG | 600 |
| Features | Bleeder |
| Max Temp F | 350°F |
| Connection Type | C x C |
| Min Temp F | _40°F |
| Connection Method | Sweat |
| Lead Free | Yes |

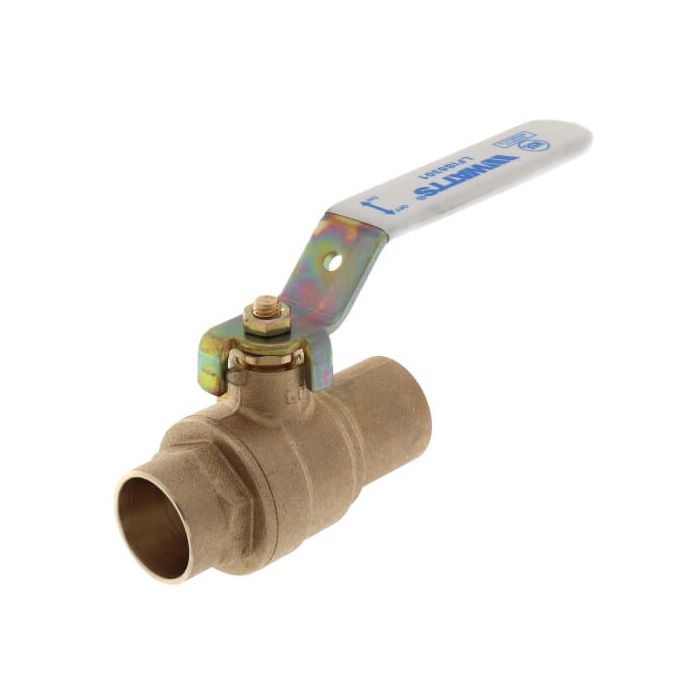

This 3/4 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 3/4 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.
Features
Adjustable packing design
Lead free brass body construction
Side drain waste port for downstream draining or venting
Chrome plated lead free brass ball
