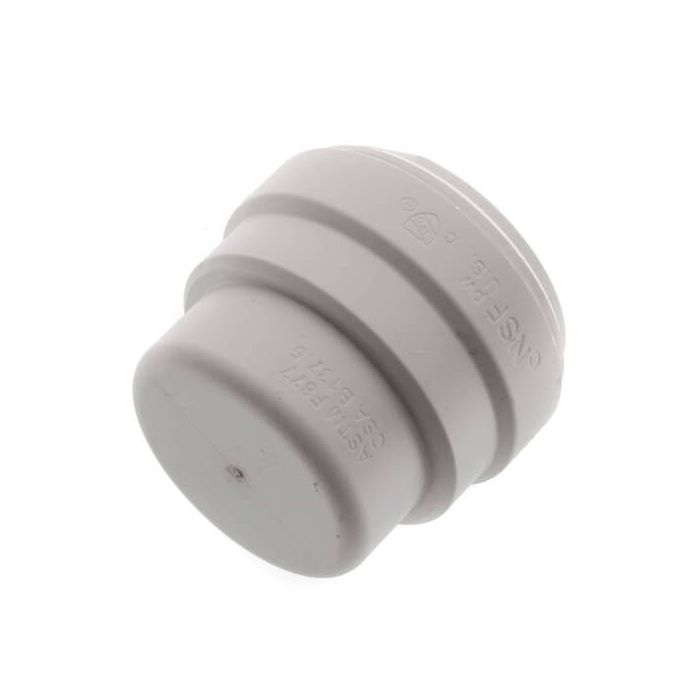

1" CTS ID JG Twist & Lock Speedfit Test Cap (Slim)
In stock
$9.43
[{"Product Highlights":"1\""},{"Product Highlights":"Engineered Plastic"},{"Product Highlights":"Yes"},{"Product Highlights":"B.S.I. to BS EN ISO9001, NSF-14, NSF-61, ASTM F 877, CSA 137.5, ASSE 1061 Standards Met"},{"Product Highlights":"25 Year Warranty"}]
| Size | 1" |
|---|---|
| Max TempPressure | 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F (Water Application) |
| Warranty | 25 Year |
| Material | Engineered Plastic |
| Features | EPDM O_Ring |
Note: A TSI36 Insert is required for heating applications (and recommended for plumbing applications) when making a connection to PEX. This insert is sold separately.
John Guest Speedfit Push-to-Connect End Caps are the easiest and most dependable way to cap Copper, PEX, or CPVC pipe with no solder, glue, or tools required. End caps are reusable and especially popular for pressure testing systems. JG Speedfit fittings use a collet with stainless steel teeth that grips the pipe when fully inserted, and an EPDM O-Ring to provide a permanent, leak-proof seal. Disconnection is just as easy with no tools needed; simply depress the collet against the fitting and pull to remove. JG Speedfit caps are suitable for hot and cold potable water and hydronic heating applications. Code approved for behind-the-wall installations. 25-Years warranty.
Features
JG Speedfit technology provides a reliable, leak-free connection
Connects to copper, CPVC and PEX pipe in any combination
Simple to use with no tools, torches or glue required
Suitable for hot and cold potable water and hydronic heating applications
Approved for behind-wall use
25-Years warranty
Lead-free, Full flow, & UV Resistant
Specifications:
150 psi @ 70°F
60 psi @ 140°F
NOTE: Speedfit fittings cannot be used on stainless steel pipe.
DO NOT USE FOR gas, fuel oil or compressed air applications.Hide Description
