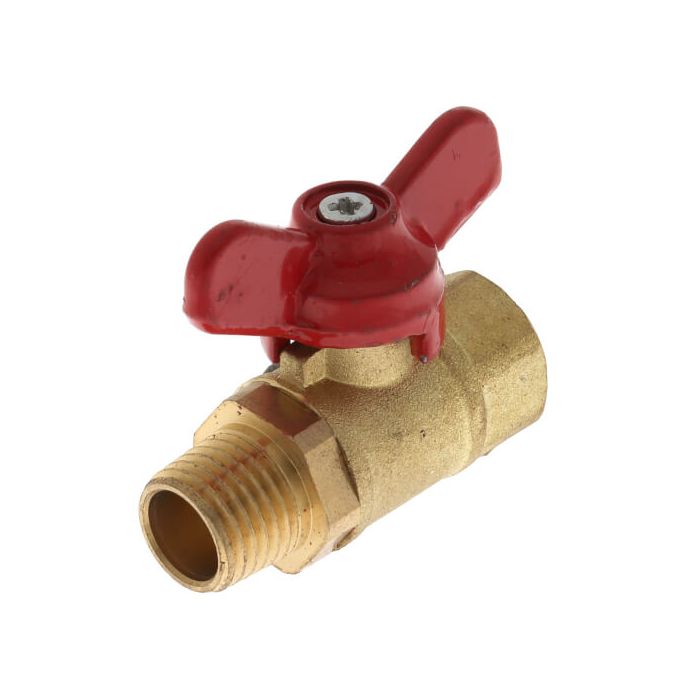

1/4" Female x 1/4" Male SMV Brass Mini Ball Valve w/ T-Handle
In stock
$22.28
[{"Product Highlights":"FNPT x MNPT Connection"},{"Product Highlights":"Brass"},{"Product Highlights":"T-Handle"},{"Product Highlights":"1 Year Warranty"},{"Product Highlights":"No"},{"Product Highlights":"Standard Port"}]
| Material | Brass |
|---|---|
| Handle Style | T_Handle |
| Max Operating Pressure | 400 psi |
| Size | 1/4" x 1/4" |
| Product Type | Valve |
| Port Type | Standard Port |
| Features | Mini Ball Valve |
| Connection Type | FNPT x MNPT |
| Warranty | 1 Year |
| Connection Method | Threaded |
| Lead Free | No |
Description & Features:
An economical isolation valve for pressure gauges and transmitters
Brass or lead free brass wetted parts
CRN registered
1 year warranty
Application:
Provides flow control for non-corrosive applications including water lines.
Specifications:
Body - #59-1 forged brass
Ball - SS
Gaskets - Teflon
Handle - Steel, plated, plastic covered
Process Temperature - -9°F to 212°F (-23°C to 100°C)
Maximum Operating Pressure - 400 psi (2,758 kPa)
Connection - 1/4" NPT Female x 1/4" NPT Male 1/4" NPT Female x 1/4" NPT Female
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.Hide Description
