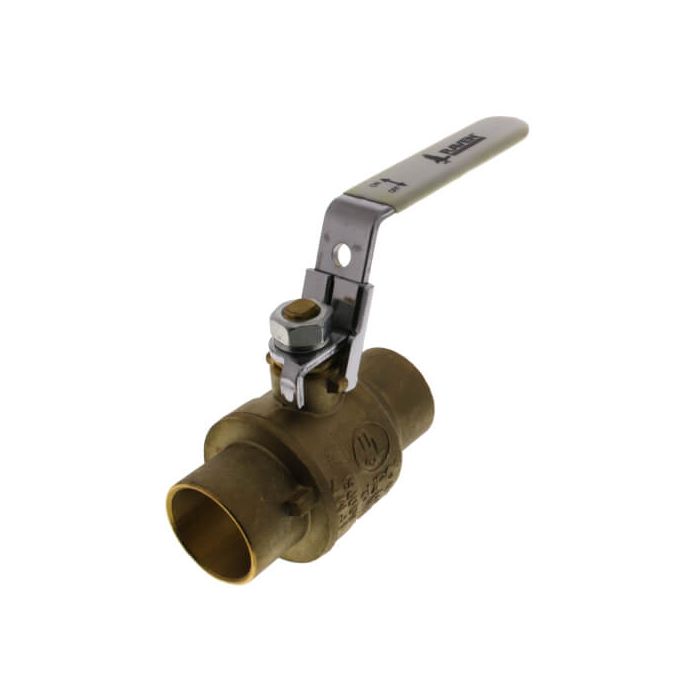

1-1/4" Full Port Sweat Ball Valve w/ Latch Lock Handle (Lead Free)
In stock
$48.09
[{"Product Highlights":"1-1/4\""},{"Product Highlights":"C x C Connection"},{"Product Highlights":"Brass"},{"Product Highlights":"Locking Handle"},{"Product Highlights":"Yes"},{"Product Highlights":"Full Port"}]
| Material | Brass |
|---|---|
| Handle Style | Locking Handle |
| Size | 1-1/4" |
| Port Type | Full Port |
| Features | Standard |
| Connection Type | C x C |
| Connection Method | Sweat |
| Lead Free | Yes |
L-610C Series premium CSA & UL/FM
approved brass ball valve. Includes chrome plated
steel handle with locking mechanism and eyelet for
padlock.
Features
Latch lock handle with vinyl grip
Dezincification resistant lead free brass
Sweat ends conform to ASME B16.22
Forged brass body
Stainless steel ball
Blow out proof stem
Packing nut, o-ring and packing on the stem seal
Material Specifications
Body: Lead Free Brass C46500
Seat: PTFE
Ball: SS304
Stem O-Ring: NBR
Packing Nut: Brass C37700
Stem: Brass C37700 (1/2†- 2â€) SS304 (2-1/2†- 4â€)
Lock Nut: Ferrum / Zinc Plated
Lock Washer: Ferrum / Zinc Plated
Packing: PTFE
Handle: Ferrum / Chrome Plated
Cap: Lead Free Brass C46500
Specifications & Approvals
Pressure Rating: 600 psi WOG / 150 psi WSP
Temperature Range: -20°F to 300°F
UL: (1/2†- 2â€) UL842 (Guide YRPY YRBX MHKZ)
125 psig, 125 (Guide YSDT) 125 psig
FM: Per FM1140 for 600psig (1/2†- 2â€)
CSA: Per NSF/ANSI-61, NSF/ANSI-372, IGC-157Hide Description
