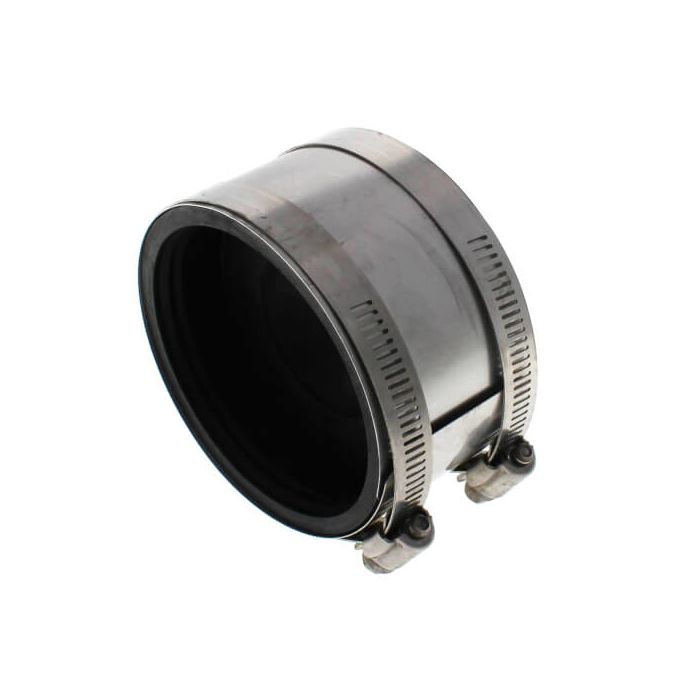

3" x 2" ProFlex Coupling (Cast Iron to Copper)
In stock
$26.07
[{"Product Highlights":"3\" x 2\""}]
| Size | 3" x 2" |
|---|
Designed for resistance to heavy earth loads and shear forces, and provides improved pipe alignment.
Proflex allows you to make transition pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 1-1/2" to 8" - PROFLEX connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems.
Features:
012" stainless steel shield
301 Stainless Steel Clamp Bands
Specifications:
Gasket Material: Neoprene
Gasket ID: Part No. and application on each gasket.
Shield Assembly Material Requirements: All 300 Series S.S.
Clamp
Band = 301 Stainless Steel .025 x .500 x Length
Housing = 301 Stainless Steel - Fernco
Screw = 305 Stainless Steel 5/16" Hex - No Slot
Shield - 301 Stainless Steel .012 x 2.125 x Length
Eyelet - 305 Stainless Steel
Installation Torque = 60" lbs.
Maximum test pressure: 4.3 PSI (29.6KPA)
Maximum operating temperature: 180° F
Conforms to the requirement of ASTM C1460Hide Description
