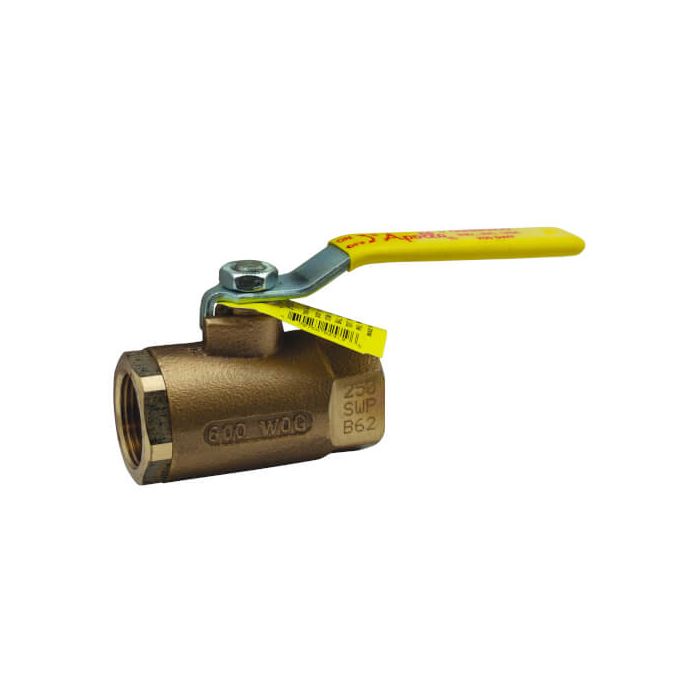

3/8" Standard Port Threaded B62 Bronze Ball Valve (7.2 Cv) - Vovance Simple
[{"Product Highlights":"3/8\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Standard Port"}]
The Apollo 70B Series for boiler external piping service has the same rugged features as the standard 70 Series valves but with ASTM B62 bronze shell components.
Features:
Blowout-Proof Stem Design
Adjustable Packing Gland
MPTFE Seats and Stuffing Box Ring
100% Factory Tested
Performance Rating:
Maximum Pressure: CWP: 600 psig | SWP: 250 psig
Maximum Temperature: 500°F
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110; Ball Valves Threaded,
Socket-Welding, Solder Joint,
Grooved and Flared Ends
CRN: OC10908.5C
ASME B31.1, "Power Piping"Hide Description
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 3/8" |
| Max Pressure PSI | 600 |
| Port Type | Standard Port |
| Features | Standard |
| Flow Capacity Cv | 7.2 |
| Thread Type | Female |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
