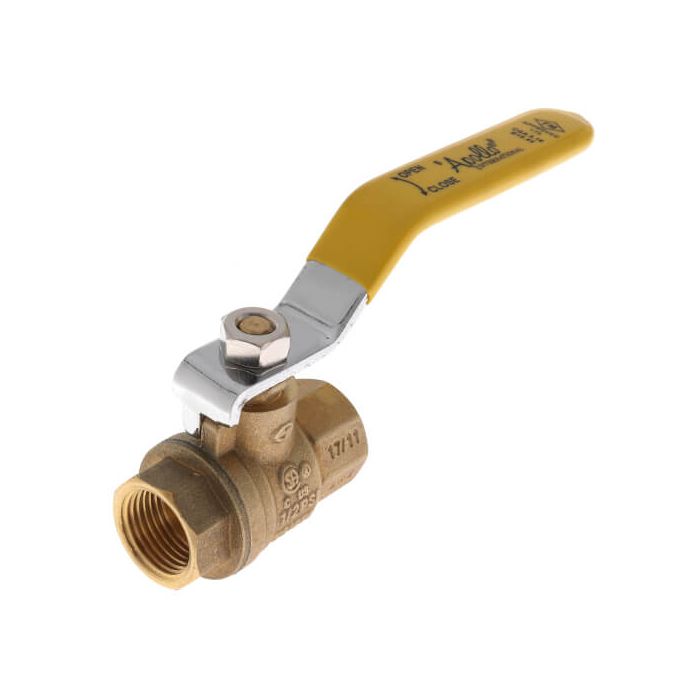

3/8" Full Port Economy Threaded Ball Valve - Vovance Simple
[{"Product Highlights":"3/8\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Brass"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
The Apollo InternationalTM 94A forged brass ball valves combine reliable operation with
maximum economy. Ideal for general flow control applications including HVAC, fuelgases, and
fire protection trim and drain etc. Valves include most pertinent agency approvals.
Features:
Two Piece Ball Valve
Size 3/8"
FNPT Connection
Max Pressure 600 PSI WOG
150 PSI WSP
Full Port
Material of Construction Brass
Seats PTFE
Stem Material Brass
Handle Lever
Temp. Range 0 To 400 F
Overall Length 4.566"
Standards UL
CSA
Performance Rating:
Valve Design Rating: 600 CWP
(400 CWP 2-1/2" to 4")
Temperature Range 0°F - 400°F
Hide Description
| Material | Brass |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 3/8" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Standard |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
