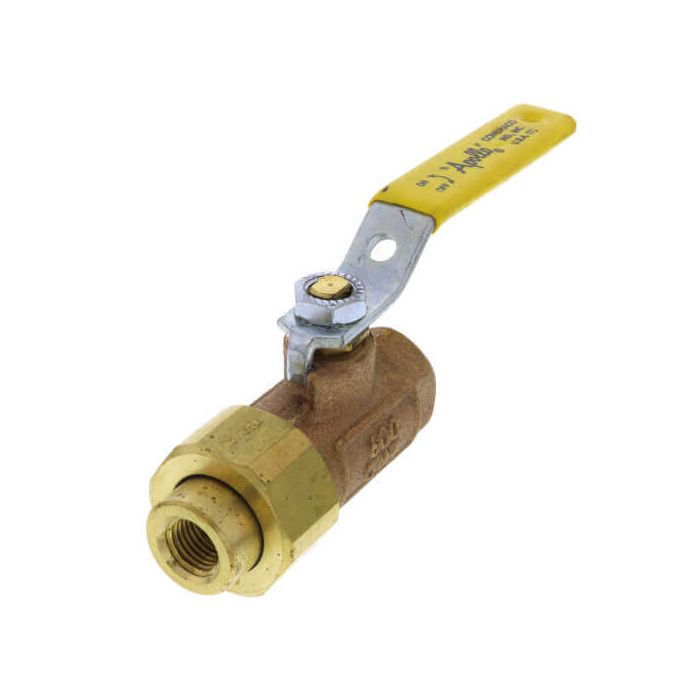

3/4" Standard Port Threaded Ball Valve w/ Union End (30 Cv)
In stock
$108.63
[{"Product Highlights":"3/4\""},{"Product Highlights":"FNPT Union x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Standard Port"}]
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 3/4" |
| Max Pressure PSI | 600 |
| Port Type | Standard Port |
| Features | Union End |
| Connection Type | FNPT Union x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
This valve combines a pipe union with ball valve shut-off; it saves time and labor by eliminating the need for extra connections. Viton O-ring sealed union requires light torque for proper seal. Valves have a standard port and RPTFE seats. Viton(R) O-ring requires only light torque for proper seal. Blowoutproof stem with an adjustable packing gland. FNPT x Union connections.
Features:
ASTM B584 Bronze
Blowout-proof stem design
Adjustable packing gland
600 psig CWP, non-shock
NPT and solder union connection
Vacuum service to 29 in. Hg
Performance Rating:
Maximum Pressure: 600 psi CWP, 150 psi SWP
Maximum Temperature: 500°F
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110
Federal Specifications: WW-V-35C
CRN: OC10908.5CHide Description
