3/4" Bronze Full Port Fuel Shut Off Valve
In stock
$92.98
[{"Product Highlights":"3/4\""},{"Product Highlights":"Bronze"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"},{"Product Highlights":"600 PSI"}]
| Material | Bronze |
|---|---|
| Size | 3/4" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Lead Free | No |

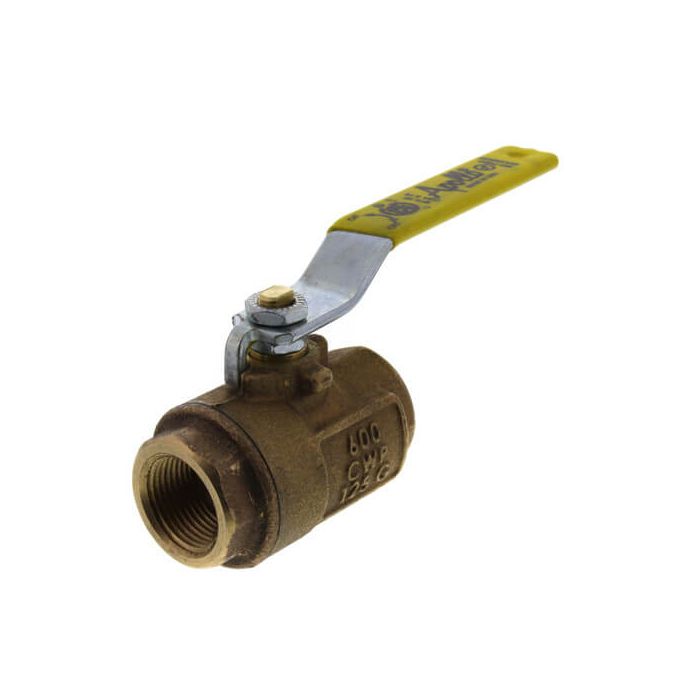

The Apollo 77G-UL series ball valve is a UL and CSA listed fuel shut off valve approved for a variety of flammable gases and liquids. Cast and machined in Apollo’s South Carolina manufacturing plants, these valves feature a durable bronze body, premium “multi-fill†MPTFE seats and stem packing, and a “Solid Ball†design that delivers true full port flow performance.
Features:
Multi-Fill PTFE Seats & Seals
Blow-Out Proof Stem Design
Adjustable Stem Packing
CSA to ASME B16.33, 125
CGA 3.16-M88, 125
UL LISTED (MHKZ Manual valves, YSDT LP gas shutoff-250, YQNZ Compressed gas shutoff, YRBX Flammable liquiid shutoff, YRPV Gas shut off
CUL LISTED (YRPV7 Gas shutoff, YRBX7 Flammable Liquid shutoff, MHKZ7 Manual valves, YSDT7 LP gas shutoff)
Performance Rating:
Maximum Body Pressure: 600 psig CWP
Pressure CSA: Up To 125 psig
Temperature Range CSA: -20°F to 150°F
Pressure UL: 250 psig max @ 125°F
Service: A (Air or non-toxic, non flammable gas), G (City gas supplied by public utilities), Ga (Gasoline), LP (Liquefied petroleum gases), 02 (No. 1 & 2 fuel oil), 04 (No. 4 fuel oil), 05 (No. 5 fuel oil), 06 (No. 6 fuel oil), S (Steam 150 psig)
Approvals:
MSS SP-110 Ball Valves
UL (Canada & US)
CSAHide Description
