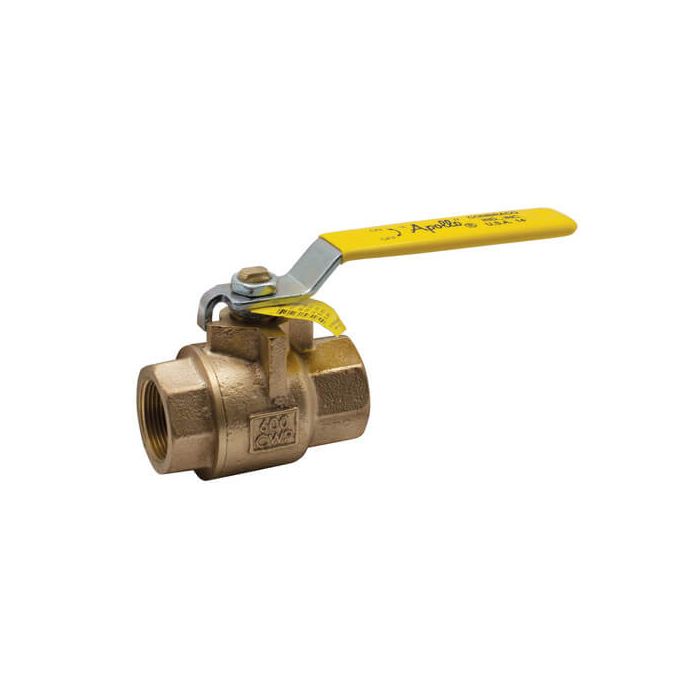

2" Full Port Contractor Series Threaded Ball Valve w/ Locking Handle (389 Cv) - Vovance Simple
[{"Product Highlights":"2\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Locking Handle"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
The Apollo 77C "Contractor Series" ball valve features a
dezincification resistant bronze body, premium "multi-fill"
MPTFE seats and stem packing, and a "Solid Ball" design that
delivers true full-port flow performance. Cast and machined in Apollo's South Carolina
manufacturing plants utilizing proven ASTM materials.
Features:
Multi-Fill PTFE Seats & Seals
Blow-out Proof Stem Design
Adjustable Stem Packing
Full-Port "Solid Ball" Design
100% Factory Tested
Made in USA
Performance Rating:
Maximum Pressure: 600 psi CWP,
150 psi SWP
Maximum Temperature: 500°F
Vacuum service to 29 in. Hg
Approvals:
MSS SP-110 Compliant
CRN: OC10908.5C
Hide Description
| Material | Bronze |
|---|---|
| Handle Style | Locking Handle |
| Valve Construction | 2 piece |
| Size | 2" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Standard |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
