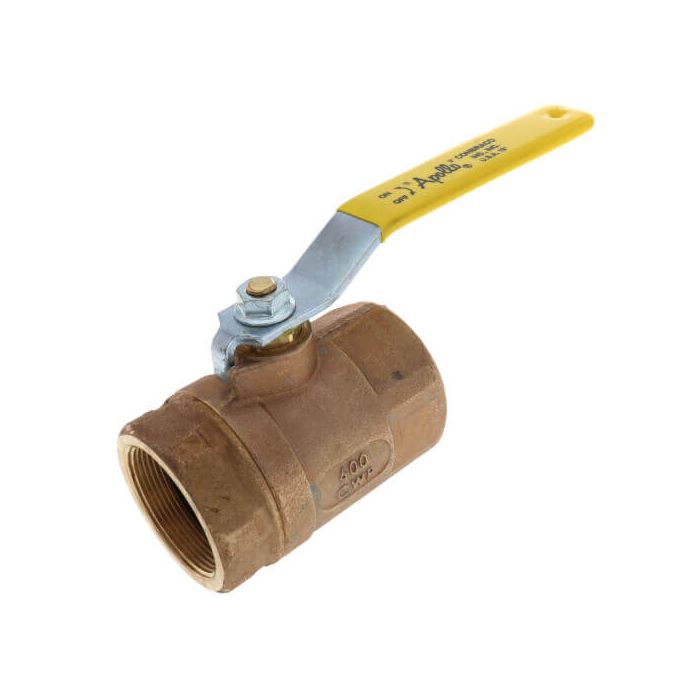

2-1/2" Standard Port Threaded Ball Valve (190 Cv)
In stock
$1,176.58
[{"Product Highlights":"2-1/2\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Standard Port"}]
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 2-1/2" |
| Max Pressure PSI | 600 |
| Port Type | Standard Port |
| Features | Standard |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market
today. The 70-100 model is a 2-piece standard port* ball valve featuring female NPT connections.
Cast and machined in Apollo's South Carolina manufacturing plants, these valves provide trusted
performance and a wide range of options.
Features:
Premium Materials and Heavy Duty
Construction
Adjustable Stem Packing Gland
Blow-Out Proof Stem Design
RPTFE Seats and MPTFE Stem Packing
Rings
Chromium Plated Ball
100% Factory Tested
Performance Rating:
Maximum Pressure: 600 psi CWP, 150 psi SWP
Maximum Temperature: 500°F
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved
and Flared Ends
CSA B51 CRN: OC10908.5CHide Description
