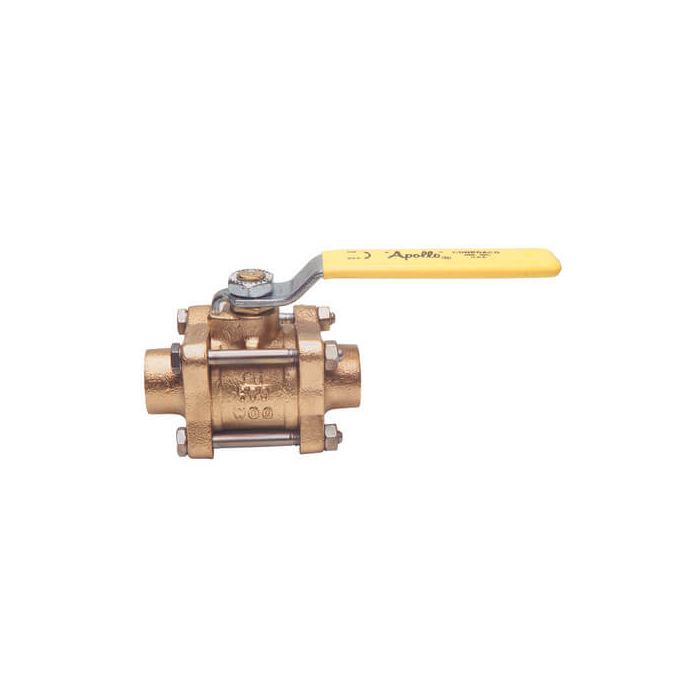

1" 3-Piece Full Port Sweat Ball Valve (68 Cv) - Vovance Simple
[{"Product Highlights":"1\""},{"Product Highlights":"C x C Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
Valve features full port and is easily repaired inline. Designed for soft soldering or brazed* installation. Includes RPTFE seats and seals.
Features:
Dezincification Resistant Bronze Body
Adjustable Packing Gland
Blow-Out Proof Stem Design
Premium RPTFE Seats and Seals
Full Port Ball Configuration in all sizes
Made in USA
Performance Rating:
Maximum Pressure:
82-100 series: 600 psi CWP, 150 psi SWP
82A-140 series: 400 psi CWP, 150 psi SWP
Maximum Temperature: 500°F
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110; Ball Valves, Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends
CSA B51 CRN: OC10908.5C
Hide Description
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 3 piece |
| Size | 1" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Standard |
| Connection Type | C x C |
| Connection Method | Sweat |
| Application | Plumbing |
| Lead Free | No |
