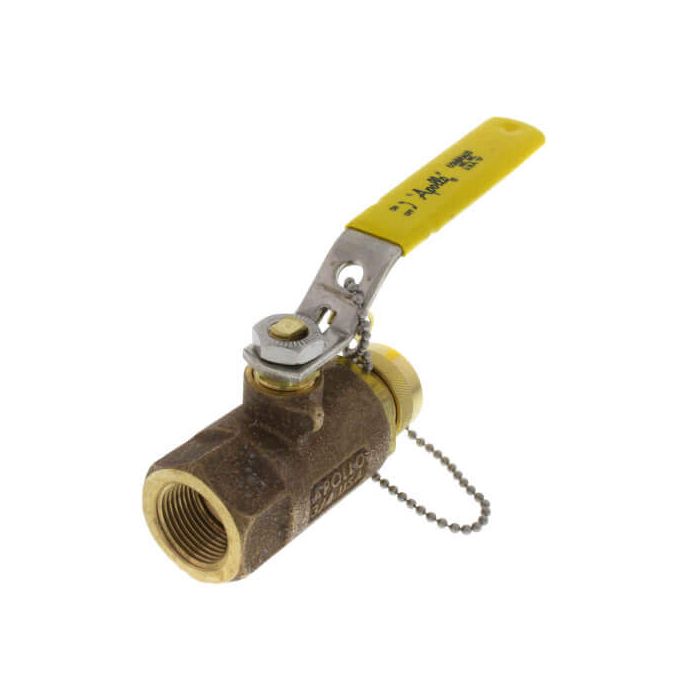

1/2" Full Port Cap & Chain Ball Valve w/ Reverse Handle
In stock
$56.07
[{"Product Highlights":"1/2\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Brass"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
| Material | Brass |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 1/2" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Hose Drain |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
Ideally suited for HVAC systems, these valves allow direct connections to hoses. Valve
features a securely attached cover (includes chain) which prevents damage to hose
threads. -200 model designed for soft soldering into lines without disassembly.
Features:
Stainless Steel Lever & Nut
Blow-Out-Proof Stem Design
Adjustable Packing Gland
RPTFE Seats and Stuffing Box Ring
Cap & Chain protects hose threads
Heavy brass cap is full pressure rated
Reverse Handle
NPT x 3/4" NPSH
Manufactured and 100% Factory Tested
in the USA
Performance Rating:
Maximum Pressure: 600 psi CWP
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved
and Flared EndsHide Description
