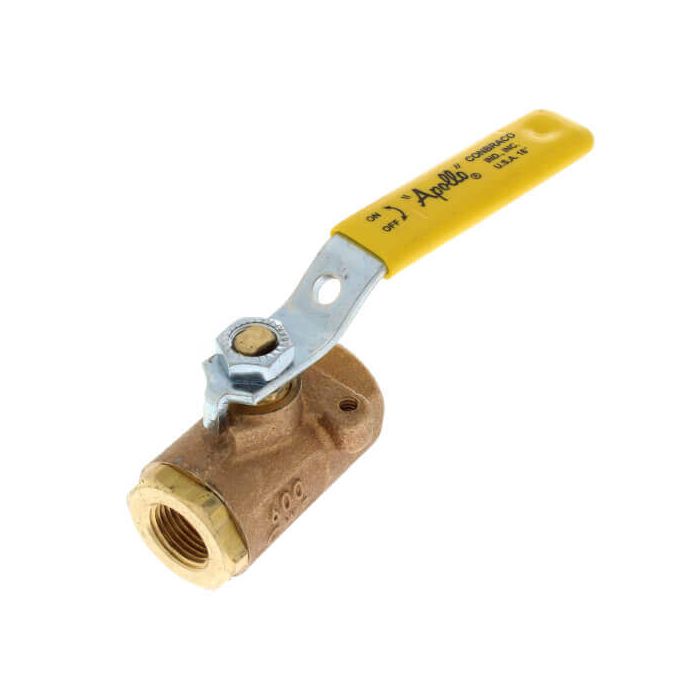

1-1/4" Full Port Threaded Ball Valve (125 Cv)
In stock
$152.39
[{"Product Highlights":"1-1/4\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 2 piece |
| Size | 1-1/4" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Standard |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
Designed for easy actuator mounting or panel mounting where highest Cv
values are desired. RPTFE seats and stuffing box ring. Also available with 250
lb. steam trim option.
Features:
Mounting pad
ASTM B584 Bronze
Blowout-proof stem design
Adjustable packing gland
Full flow, minimum pressure drop
600 CWP, non-shock pressure rating
150 SWP steam rating
Chain lever kits available 3/4"- 2-1/2" (-16, -58)
